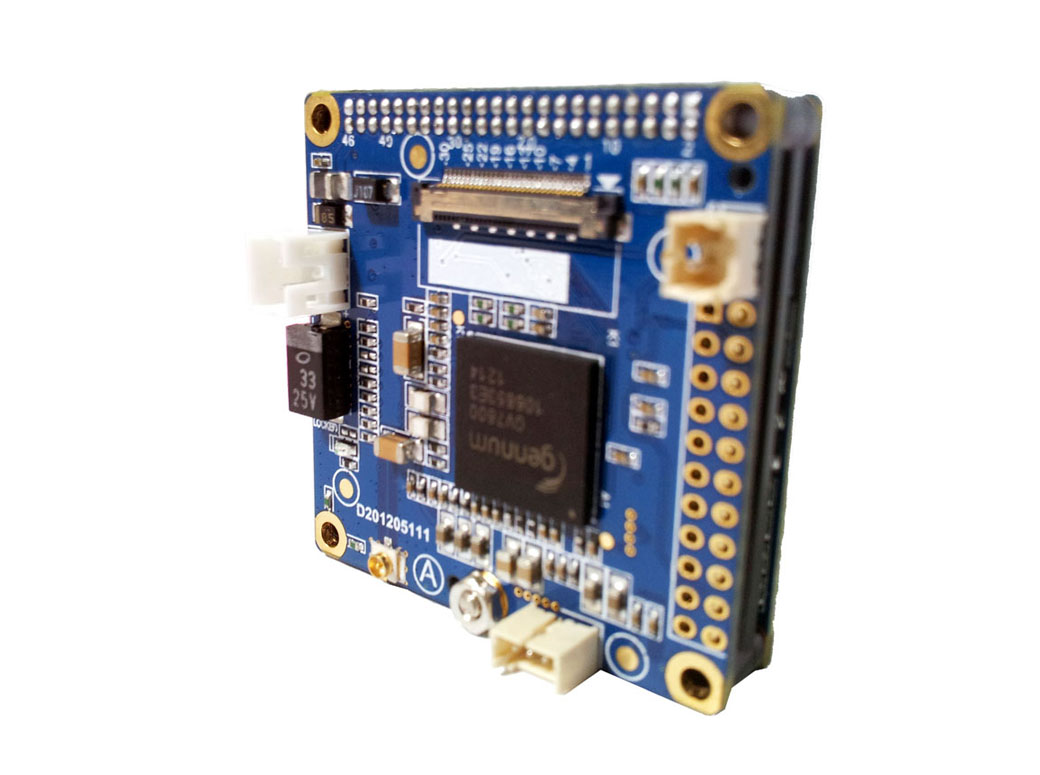

PE0003 SDI
Output signal : HD-SDI
Sensor : 1/2.8" CMOS, 2.0 Megapixels
Minimum lux : 0.5 Lux
Quality with Outstanding Resolution, Sharpness and Color Performance.
■ Superior Image Quality
◆ 2.0 megapixels, 1/2.8" CMOS Sensor;
◆ Full HD image quality: 1080p60, up to 900/1000 TVL
■ Ultra High Speed Shutter
Supports ultra-high shutter speed up to 1/10000 second enabling to capture quick momentsof fast moving subjects in time while providing outstanding image quality.
■ Defog
Can help to produce clearer images from foggy images caused by bad weathers such
as fog, haze, and dust etc. which would lead to effectiveness of surveillance.
■ Hi-performance 2A (AE/AWB)
◆ Auto White Balance
Accurate and natural color reproduction; Color correction with “one push”
◆ Auto Exposure
Able to automatically adjust brightness accordingly and prevent clipped
white/dark even in the most difficult lighting conditions to enhance image quality.
■ Color Enhancement, Shading Compensation, Sharpness Enhancement, Backlight Compensation
■ Defective Pixel Correction (Dynamic & Static)
■ Noise Reduction、Anti-flicker、Day/Night
■ Privacy Mask (upto 16 zones)
■ Picture Effect(Color Negative、Monochrome)
■ Standard Mount C/CS, suitable for most of the general purpose lenses
■ OSD menu
Simple, efficient & easily understandable way of changing various settings.
■ Low latency, high resolution image, long distance transmission
◆ Uncompressed, unencrypted HD-SDI signals transmission enables virtually low
latency with real-time imaging, no deterioration in picture quality.
◆ With coaxial cable, it`s able to transmit high quality picture up to 100 meters.
■ Support HD-SDI, PAL / NTSC output
PAL/NTSC output can be convenient for on-site testing when performing an
installation or performing maintenance.
For more features/ details please check out the specifications for your reference.
|
Specifications |
Item |
Descriptions |
|
Image Sensor |
Type |
CMOS |
|
Optical Size |
1/2.8 type |
|
|
Effective Pixels |
2080（H）×1553（V）＝ Approx. 3.23 Mega Pixels |
|
|
Total Pixels |
2144（H）×1588（V）＝ Approx. 3.4 Mega Pixels |
|
|
Scan System |
Progressive Scan |
|
|
Camera Mode |
Frame Rate |
1080P60, 1080P50, 1080P30, 1080P25 1080i60, 1080i50, 720P60, 720P50, 720P30, 720P25 |
|
Output Pixels |
1920×1080 |
|
|
1280×720 |
||
|
Output Format |
Digital Output |
HD-SDI |
|
Resolution（Depending on type of Lens） |
Horizontal |
1000 TVL |
|
Vertical |
900 TVL |
|
|
Exposure |
Electronic Shutter |
AUTO, 1/100～1/10000 sec |
|
GAIN |
AUTO, 0dB～42dB |
|
|
Sensitivity（Depending on type of Lens） |
Min. Lux in color mode |
0.5 Lux（1/30 sec） |
|
Main Functions |
Auto Exposure |
Auto / Manual / Shutter Priority |
|
White Balance |
Auto / Tungsten Bulb / Fluorescent / Sunlight / Cloudy/ Off |
|
|
Wide Dynamic Range |
OFF, 1～4 Level |
|
|
Backlight Compensation |
OFF / ON |
|
|
Noise Reduction |
OFF, 1～3 Level |
|
|
Slow Shutter |
OFF / ON |
|
|
Test Output |
Black Raster, White raster, Color Bar |
|
|
Privacy Mask |
16 zones |
|
|
Others |
Power |
DC9～15V, 1.3 W |
|
Temperature |
-10℃～＋55℃ |
|
|
Size(excluding protrusion) |
38(W)ｘ38(H)ｘ18(L)mm |
|
|
Weight |
17.5 g |
