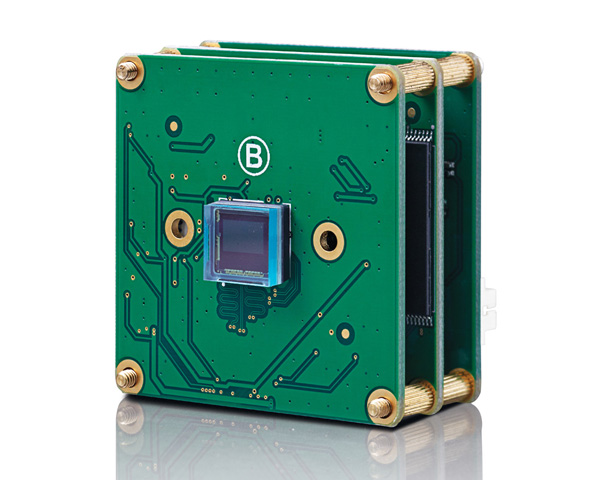

AT-M200Y
Output signal : YUV
Sensor : 1/2.8" MOS, 2.35 Megapixels
Minimum lux : 0.01 Lux
Original ISP
with Outstanding Resolution, Sharpness & Color Performance.
---------------------------------------------------------------------------------------------------------------------------
■ Superior Image Quality
◆ 2.35 megapixels, 1/2.8" MOS Sensor
◆ 1080P Full HD
---------------------------------------------------------------------------------------------------------------------------
■ High Light Sensitivity
Capable of performing in conditions of up to 0.01 Lux in color mode.
---------------------------------------------------------------------------------------------------------------------------
■ Ultra High Speed Shutter
Supports ultra-high shutter speed up to 1/32000 second enabling to capture quick moments
of fast moving subjects in time while providing outstanding image quality.
---------------------------------------------------------------------------------------------------------------------------
■ Slow Shutter
Capable to shoot color videos at a frame rate of 30 frames /sec with a shutter speed
of 1/1 second in poor-lit environments (with no moving subjects/objects).
---------------------------------------------------------------------------------------------------------------------------
■ Defog
Can help to produce clearer images from foggy images caused by bad weathers such
as fog, haze, and dust etc. which would lead to effectiveness of surveillance.
---------------------------------------------------------------------------------------------------------------------------
■ Digital image stabilization
Able to effectively reduce & correct blurring caused by vibration/ shaking to enhance
image clarity.
---------------------------------------------------------------------------------------------------------------------------
■ Hi-performance 2A (AE/AWB)
◆ Auto White Balance
Accurate and natural color reproduction; Color correction with “one push”
◆ Auto Exposure
Able to automatically adjust brightness accordingly and prevent clipped
white/dark even in the most difficult lighting conditions to enhance image quality.
---------------------------------------------------------------------------------------------------------------------------
■ Digital Zoom
Able to magnify a ROI (region of interest) 1.2~16 times
---------------------------------------------------------------------------------------------------------------------------
■ P-IN-P
Provide an intuitive way to simultaneously see a Region of Interest (ROI) within a
global view.
---------------------------------------------------------------------------------------------------------------------------
■ Motion Detection / Activity Detection
Able to capture the events, mark the objects that caused the motion and send out
alert signals.
---------------------------------------------------------------------------------------------------------------------------
■ Digital Noise Reduction
Capable to reduce noise caused by low lighting situations etc. to help to improve
image quality.
---------------------------------------------------------------------------------------------------------------------------
■ Spot Meter
In high contrast lighting, the camera allows you to select and spot meter any one out
from the 25 zones the scene is split into. It is especially helpful for scenes with backlit
subjects or subjects with different light levels and intensities.
---------------------------------------------------------------------------------------------------------------------------
■ Anti-flicker
◆ Enables to effectively reduce flickering caused by fluorescent (LED) lighting.
◆ 50HZ / 60 HZ / “one push” selectable.
---------------------------------------------------------------------------------------------------------------------------
■ Image Effect：Reverse，Flip，Mirror，Monochrome etc.
Special image effects can be helpful for surveillance cameras for example, it is able to
correct for upside down mirroring optics etc. by Mirroring or flipping a video image, left
to right, or top to bottom.
---------------------------------------------------------------------------------------------------------------------------
■ Quick Settings
◆ Can change various settings following OSD instructions of 5-KEY Control
◆ Built-in non-volatile memory enables to save personal settings.
---------------------------------------------------------------------------------------------------------------------------
■ Full suite of OSD menu
Simple, efficient & easily understandable way of changing various settings.
---------------------------------------------------------------------------------------------------------------------------
■ Support YUV, PAL / NTSC output
PAL/NTSC output can be convenient for on-site testing when performing an
installation or performing maintenance.
---------------------------------------------------------------------------------------------------------------------------
For more features/ details please check out the specifications for your reference.
|
Image Sensor |
Type |
MOS |
|
Size |
1/2.86 type (inch) |
|
|
Effective Pixels |
1944(H) × 1213(V) = 2,358,072(Pixels) |
|
|
Total Pixels |
1956(H) × 1266(V) = 2,476,296(Pixels) |
|
|
Camera Mode |
Frame Rate |
1080P30,1080P25；1080i60,1080i50；720P60,720P50；720P30,720P25 |
|
Output Pixels |
1920(H)X1080(V) ; 1280(H)X720(V) |
|
|
Output Signal |
YUV |
|
|
Resolution |
Horizontal:1200TVL; Vertical:1100 TVL |
|
|
Minimum lux |
0.1Lux(1/30sec,High Senstivity Off) ; 0.01Lux (Slow Shutter Auto,High Sensitivity On) |
|
|
Exposure |
Shutter |
Auto,1/1～1/32000 |
|
Gain |
Auto,0dB～60dB |
|
|
Main Function |
AE |
Auto/Manual/Shutter Priority/Gain Priority |
|
AWB |
Auto/Manual/Indoor/Outdoor/One Push |
|
|
Digital Zoom |
1.2x~16x(Zoom Area Removable) |
|
|
PIP |
Off/On (Area Removable) |
|
|
WDR |
Off/On |
|
|
Defog |
Off/On/Auto |
|
|
HLC |
Off/On |
|
|
Back Light Compensation |
Off/On |
|
|
Image Stabilizer |
Off/On |
|
|
Motion Detect |
Off/On (Alarm Control) |
|
|
Noise Reduction |
Off,1~5 Step |
|
|
Slow Shutter |
Off/On |
|
|
Picture Freeze |
Off/On |
|
|
Privacy Mask |
Size/Position Variable |
|
|
Interface |
Sync |
Internal |
|
Control Interface |
"Compatible with Sony Visca;Baud rate:9600,19200,38400" |
|
|
Alarm |
3.3V CMOS Level |
|
|
Power |
Supplied Voltage |
9V~15V(12V Standard) |
|
Consumption |
2W |
|
|
Temperature |
Operating Temperature |
-10℃～+60℃ |
|
Storage Temperature |
-20℃～+60℃ |
|
|
Dimension |
38(W)x38(L)x25(H)mm / 3 Layer PCB Board |
|
|
Weight |
≦40g |
|
