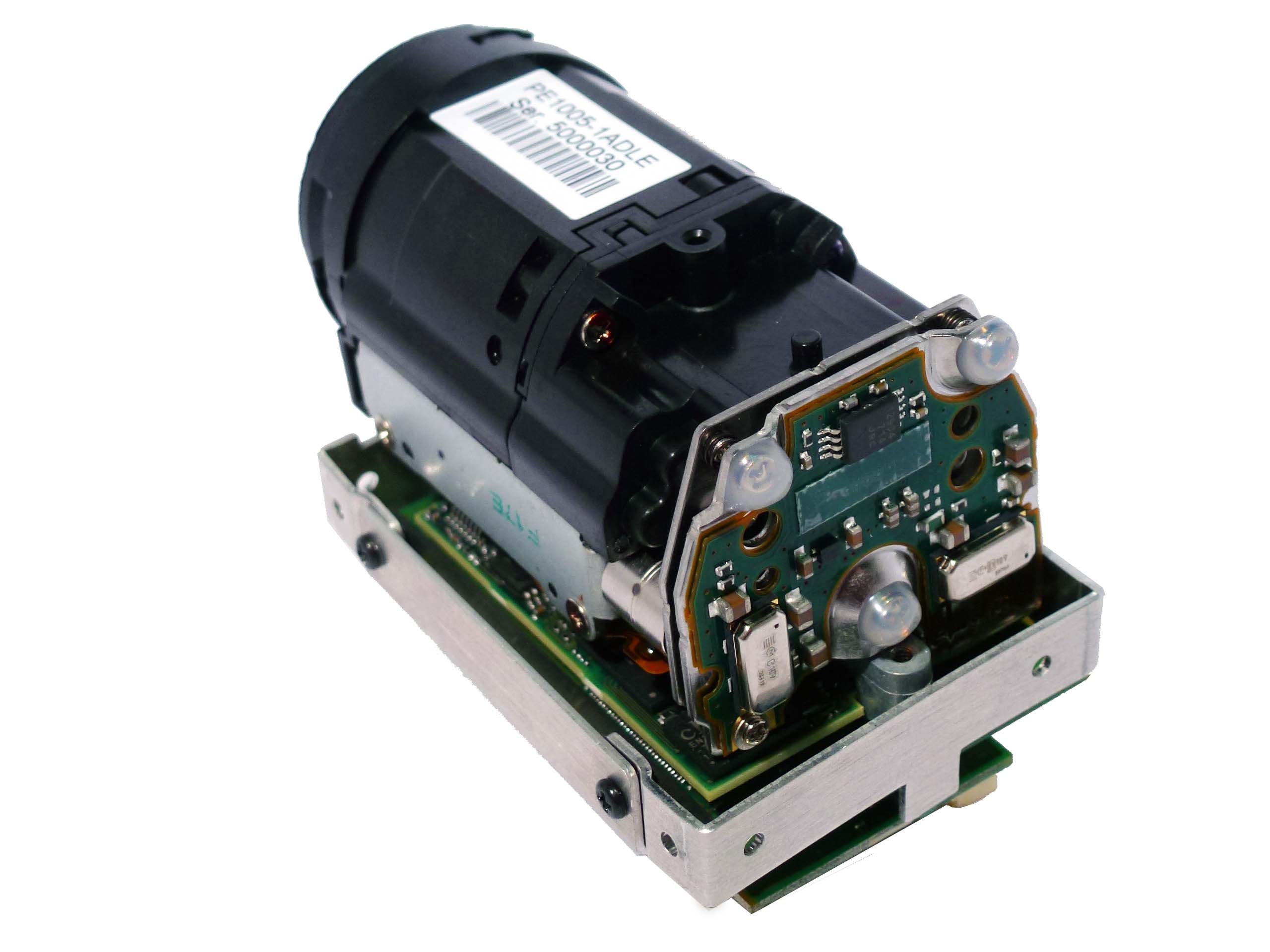

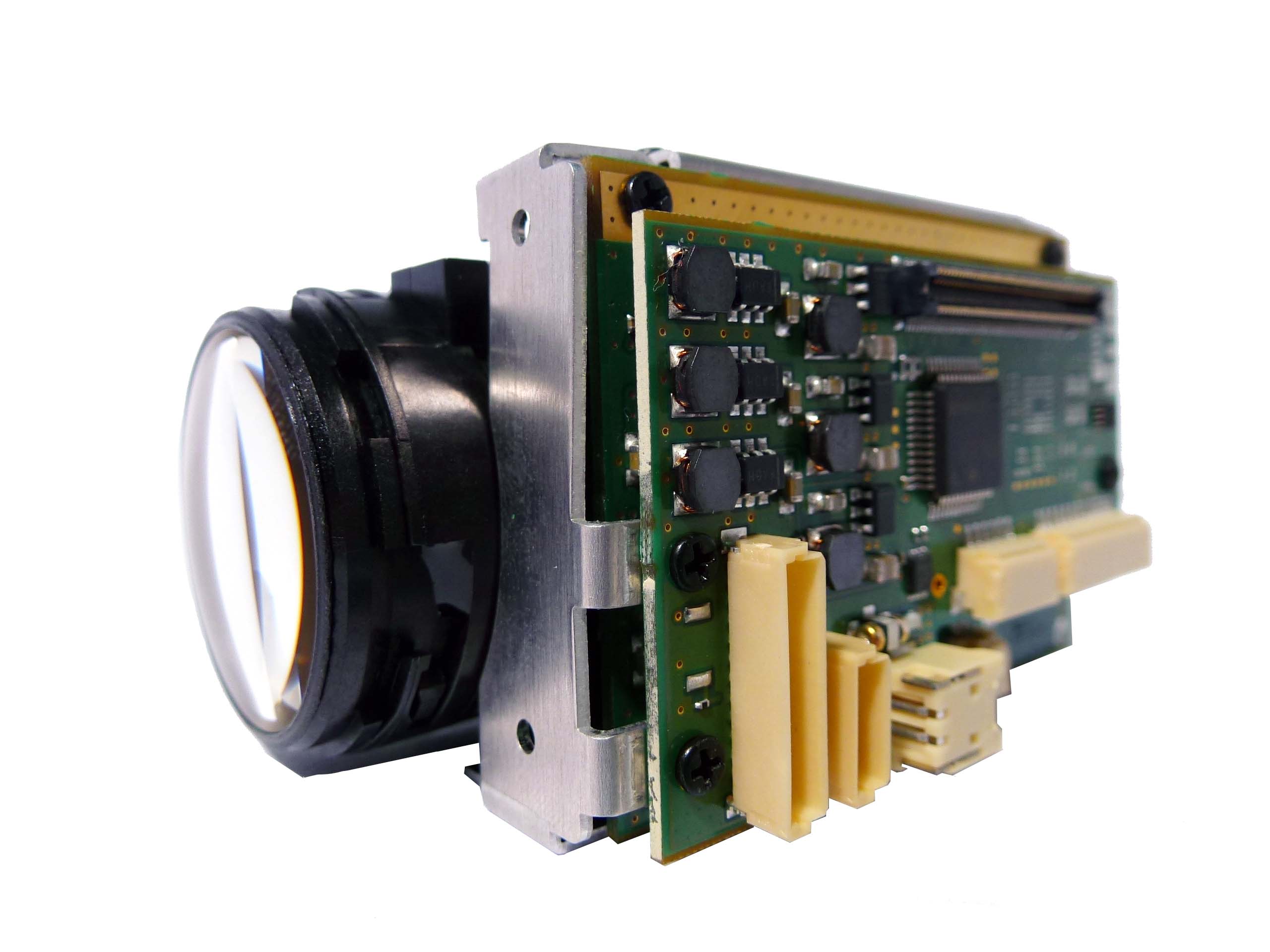

PE1005 A1/A2
Output Signal : HD-SDI
Sensor : 1/2.5" CMOS, 2.1 Megapixels
Zoom : 10x Optical
Weight : ≈75g,Ultra Compact
combination of high performance with compact size.
■ Outstanding Full HD image quality
◆ 2.1 Megapixels
◆ 1080P Full HD
■ Hi- performance 10x Optical zoom
F1.8～F2.2, f=4.5mm～45mm
■ Macro Focus (min. 1cm at wide angle)
Able to close up at a minimum focusing distance of approx.1 cm capturing details of subject
with outstanding image quality.
■ High performance 3A (AE/AF/AWB)
◆ Auto White Balance
Enables accurate and natural color reproduction.
◆ Auto Exposure
Enables to automatically adjust brightness accordingly and prevent clipped white/dark
even in the most difficult lighting conditions to enhance image quality.
◆ Auto Focus
Avoid misfocus and enables to capture the specific scene rapidly & accurately to produce
clearer images.
◆ Image Stabilization
To reduce & correct blurring caused by vibration/ shaking to enhance image clarity.
■ Backlight compensation
To produce better images in scenes where subject of interest is back-lit which would normally
make the subject of interest to appear silhouette.
■ Anti-flicker
◆ Enables to effectively reduce flickering caused by fluorescent (LED) lighting
◆ 50HZ /60 HZ selectable
■ Auto Slow Shutter
Auto slow shutter helps in reducing the amount of video noise that is recorded when shooting
in dark areas.
■ Noise Reduction
Capable to effectively reduce image noise caused by low lighting situations etc. to help to
improve image quality.
■ B&W , Negative , Mirror Image , Digital Flip etc.
Special image effects can be helpful for surveillance cameras for example, it is able to
correct for upside down mirroring optics,ceiling mounted cameras etc.by Mirroring or flipping
a video image,left to right,or top to bottom.
■ OSD menu
Simple, efficient & easily understandable way of changing various settings.
For more features / details please check out the specifications for your reference.
|
Sensor |
1/2.5 CMOS |
|
Effective Pixels |
2.1 Mega Approx. Pixels |
|
Lens |
10x Optical |
|
f=4.5mm（wide-angle end）-45mm（far end） |
|
|
F1.8～F2.2 |
|
|
Visible Angle |
Opposite Angle:47.5°-5° |
|
Minimum Distance |
Nomal:wide-angle end:≥20cm;far end:≥100cm |
|
Video Output Format |
1920x1080p 30 fps |
|
1280x720p 30/60 fps |
|
|
1920x1080i 60/50 fps |
|
|
Output Signal |
HD-SDI CVBS(PAL/NTSC) |
|
Minimum Lux |
6 Lux(F1.8/50IRE/TV=1/30sec, 1920×1080 Movie Mode) or Video Mode |
|
1 Lux(F1.8/50IRE/TV=1/8sec, 1920×1080 Movie Night Mode) |
|
|
0.35 Lux(F1.8/50IRE/TV=1/8sec,720×480 Movie High Sensitivity Mode） |
|
|
Recommended Lux |
10Lux～100000Lux |
|
Zoom |
10x Optical, 16x Digital |
|
Focus |
Auto/Interval/ Zoom triggered/Manual/ OnePush |
|
White balance |
Auto/Manual/Indoor/Outdoor/One Push |
|
Shutter |
1/8-1/4000 sec |
|
AE Control |
Auto/Manual/Shutter priority/aperture priority/ISO sensitivity priority |
|
Sync |
Internal |
|
EV Compensation |
-2.0 EV - +2.0 EV |
|
Image Effect |
B&W /Negative /Mirror Image /Digital Flip |
|
Features |
Macro Focus / Auto Slow Shutter / Image Stabilizer / WDR / Back light Compensation/ Noise Reduction/ / Anti-flicker /Focus Preset /OSD Menu |
|
Temperature |
Working Temperature:-10℃~+60℃ ; Storage Temperature:-20℃~+60℃ |
|
Control Interface |
Compatible with Sony Visca RS232/Pelco-P/Pelco-D protocol |
|
Power Supply |
5.0±0.5V DC |
|
Power Consumption |
≈3.75W (1080/60i ) |
|
Weight |
≈75g |
|
Dimension |
63.5(L)x43.5(H)x36.5(D)mm |
