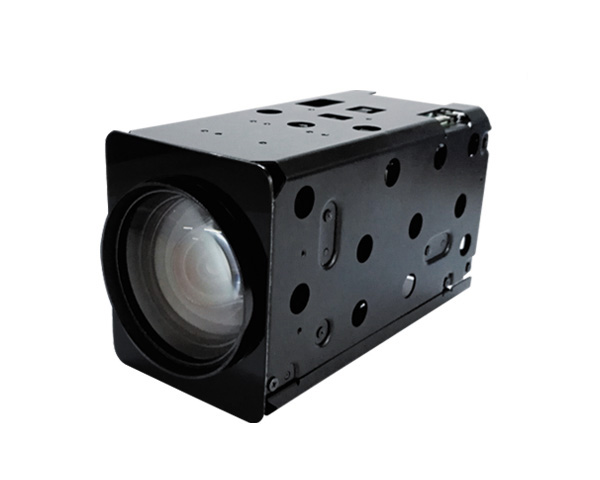

AT-E230L
Output Signal : LVDS
Sensor : 1/1.9" CMOS, 2.38 Megapixels
Zoom : 30x Optical,16x Digital
Original ISP
Our original ISP , high performance 30X zoom lens & high performance sensor , together enable
a Superior Image Quality with Outstanding Resolution, Sharpness & Color Performance.
■ Superior Image Quality
◆ 2.38 Megapixels
◆ 1080P Full HD
◆ High performance 30x optical zoom lens
■ Ultra-High Light Sensitivity
Capable of performing in conditions of up to 0.001 lux in color mode.
■ Ultra High Speed Shutter
Supports ultra-high shutter speed up to 1/32000 second enabling to capture quick
moments of fast moving subjects in time while providing outstanding image
quality.
■ Slow Shutter
Capable to shoot color videos at a frame rate of 30 frames /sec with a shutter speed of
1/1 second in poor-lit environments (with no moving subjects/objects).
■ Defog
Can help to produce clearer images from foggy images caused by bad weathers such as fog,
haze, and dust etc. which would lead to effectiveness of surveillance.
■ Digital image stabilization
Able to effectively reduce & correct blurring caused by vibration/ shaking to enhance
image clarity.
■ Hi-performance 3A (AE/AF/AWB)
◆ Auto White Balance
Accurate and natural color reproduction; Color correction with “one push” button
◆ Auto Exposure
Able to automatically adjust brightness accordingly and prevent clipped white/dark even in
the most difficult lighting conditions to enhance image quality.
◆ Auto Focus
To avoid Defocusing and enable to capture the specific scene/subject of interest
rapidly & accurately enough to ensure a clearer image quality.
■ Digital Zoom
Able to magnify a ROI (region of interest) 1.2~16 times.
■ P-IN-P
Provide an intuitive way to simultaneously see a Region of Interest (ROI) within a global view.
■ Motion Detection / Activity Detection
Able to capture the events, mark the objects that caused the motion and send out
alert signals.
■ Digital Noise Reduction
Capable to reduce noise caused by low lighting situations etc. to help to improve image quality.
■ Spot Meter
In high contrast lighting, the camera allows you to select and spot meter any one out from the
25 zones the scene is split into. It is especially helpful for scenes with backlit subjects or
subjects with different light levels and intensities.
■ Anti-flicker
◆ Enables to effectively reduce flickering caused by fluorescent (LED) lighting
◆ 50HZ / 60 HZ / “one push” selectable.
■ Image Effect：Reverse，Flip，Mirror，Monochrome etc.
Special image effects can be helpful for surveillance cameras for example, it is able to correct
for upside down mirroring optics etc. by Mirroring or flipping a video image, left to right,
or top to bottom.
■ Quick Settings
◆ Can change various settings following “VISCA”Command Communication
◆ Built-in non-volatile memory enables to save personal settings.
■ Support LVDS-I/F, PAL / NTSC output
In addition to LVDS, also support PAL/NTSC output which can be convenient for on-site
testing when performing an installation or performing maintenance.
For more features, more details please check out the specifications for your reference.
|
Sensor |
1/1.9 CMOS |
|
Effective Pixels |
2,380,000 |
|
lens |
Optical×30 lens |
|
f=6mm(wide-angle end)~180mm(far end) |
|
|
F1.5～F4.3 |
|
|
Visible angle |
61.2°～2.32° |
|
Minimum distance |
10mm～1000mm |
|
Video output |
1080p30,1080p25 |
|
1080i60,1080i50 |
|
|
720p60,720p50 |
|
|
720p30,720p25 |
|
|
NTSC/PAL |
|
|
Output signal |
LVDS |
|
Minimum illumination |
High Sensitivity OFF,ICR OFF:0.1lux |
|
High Sensitivity ON,ICR OFF:0.05lux |
|
|
High Sensitivity OFF,ICRON:0.01lux |
|
|
High Sensitivity ON,ICRON:0.001Lux(Astal class) |
|
|
Recommended illumination |
10lux~100000lux |
|
SNR |
≥56dB |
|
Sync |
Internal |
|
Zoom |
30x Optical ,16x Digital |
|
Focus |
Auto( Sensitivity:Normal/ low) / Manual / One Push /Infinity/Interval / Zoom Triggered / infrared compensation |
|
AE Control |
Auto / Manual / Shutter Priority / Aperture Priority / Bright |
|
AWB |
Auto / Manual / Indoor / Outdoor / One Push / Sodium Lamp |
|
Shutter |
1/1~1/32000,Shutter speed limit |
|
Gain |
0dB~30dB(High Sensitivity OFF) 0dB~60dB(High Sensitivity ON),Gain limit |
|
EV compensation |
-18.0dB~+18.0dB |
|
ICR |
ICR(ON/OFF) |
|
Features |
Video Image Stabilizer/High Light Compensation/Auto slow Shutter/Defog/WDR/Motion Detect/Back light Compensation/Digital Noise Reduction/Spot-exposure/Digital Zoom/PIP |
|
Other Function |
Gamma / Sharp Point Control / Freeze / Privacy Mask / Display / Focus Preset |
|
Image Effect |
Electronic flip、Negative、B&W、Mirror image |
|
Control Interface |
Compatible with Sony Visca;Baud rate:9600,19200,38400 |
|
Temperature |
Operating Temperature:-10℃~+60℃ ; Storage Temperature:-20℃~+60℃ |
|
Power Supply |
9V~15V(12V Standard) |
|
Power Consumption |
Non-lens driver(2W),Lens driver(3W) |
|
Weight |
≈620g |
|
Dimension |
56(W)x68(L)x122(H)mm |
